ZenSTOR-5p Shared Storage

Mobile Ethernet Storaged Storage


Portable Ethernet Shared Storage

ZenSTOR-5p is a full featured, high-performance video editing shared storage appliance with advanced file sharing capabilities. ZenSTOR-5p is designed to enable video editors the ability to edit their content immediately to meet demanding schedule requirements in a mobile workflow environment.

ZenSTOR-5p is an mobile all-in-one Ethernet-based shared storage solution for professional video editors who require shared access to media files. The Server, Networking, and Storage are all accommodated within ZenSTOR-5p space saving desk top design.



Put the latest storage technology to work for you

ZenSTOR-5p is a five-drive system supporting 2TB, 3TB, 4TB, 6TB, 8TB, 10TB, 12TB, and 14TB disk drives. Combined with the 2 on board GbE ports, the system is simple to set up and manage allowing the storage to be available to users within minutes of initial start up. The ZenSTOR-5p can also support up to 2 ports of 10Gb Ethernet if you need more performance.


Everything you need in one Box

ZenSTOR-5p supports all the same editing software applications as its big brothers – ZenSTOR-12 and ZenSTOR-16 – including Avid+IndieStor, Adobe Creative Suite, Apple Final Cut 7, and Apple Final Cut Pro 10 in addition to other popular multimedia applications. None of the ZenSTOR products require any additional client or server licenses or metadata server(s). ZenSTOR-5p supports AFP (Apple File System), NFS (Network File System) and Samba (CIFS) which allows Windows, Linux, Macintosh and UNIX clients to share media files residing on ZenSTOR-p’s storage.

  • Portable

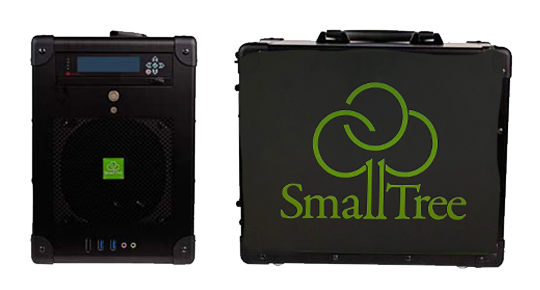

    The ZenSTOR-p comes with a built-in handle attached to a very rugged case to stand up to the rigors of mobile requirements

  • RAID Support

    Protect your mobile date with extended RAID Drives - Support for RAID Level 0, 1, 5 and 10

  • Connectivity

    2 Gigabit and two optional 10 Gigabit or four Gigabit Ethernet Ports. Connect up to 6 clients.

  • Fans

    Variable Speed Fans — Operate slow and quiet during light loads, increased fan speed during high demand periods

  • Integrated Power

    Integrated Universal Power Supply — Built-in power supply means no external power brick to dangle or loose

  • Durability

    Rugged Aluminum Housing — Portable protection for any environment


Stream Performance

ZenSTOR-5p has all of the high-performance features, advanced file sharing capability of the ZenSTOR-12 and ZenSTOR-16 products, in a less expensive more portable design.



Stream Performance


Format Bandwidth
Stream Counts

DVCProHD  16.2 MB/sec
26

ProRes 422 20.6 MB/sec 22

ProRes 422 HQ 30.9 MB/sec 15

ProRes 4444 41.0 MB/sec 12

Stream Performance


Operating System Customized BSD
File System ZFS
Management Web GUI
Boot Device SSD
File Access Protocols AFP, Samba (CIFS), NFS, FTP, FTPS, SFTP
RAID Levels 0, 1, 5, 10
Processors 1
System Memory 16GB
Drives - Base System 5
Drives - Max Supported 5
Drive Capacity 2TB, 3TB, 4TB, 6TB, 8TB, 10TB, 12TB, 14TB
Supported 6Gb SAS
Onboard GbE ports 2
Onboard 10GbE ports 0
Optional GbE ports up to 4
Optional 10GbE ports up to 2
HBA 0
Power Supplies 1 X 450 Watts
Fans 1 (hot swappable/redundant)
Physical Characteristics
Dimensions 8.7” x 12.6” x 14.2” (220cm x 320cm x 360cm)
Weight 21lbs
Operating Temperature 10º to 35º C (50º to 95º F)
Non-Operating Temperature -40º to +70º C (-40º to 158º F)
Relative Humidity 8% to 90% (non-condensing)
Power Consumption Maximum 132.2 Watts
Power Consumption Idle 64.1 Watts
Input Voltage Range 100-240 V
Input Current (max) 6A
Input Frequency 50-60Hz
Input Connector IEC 320-C13
