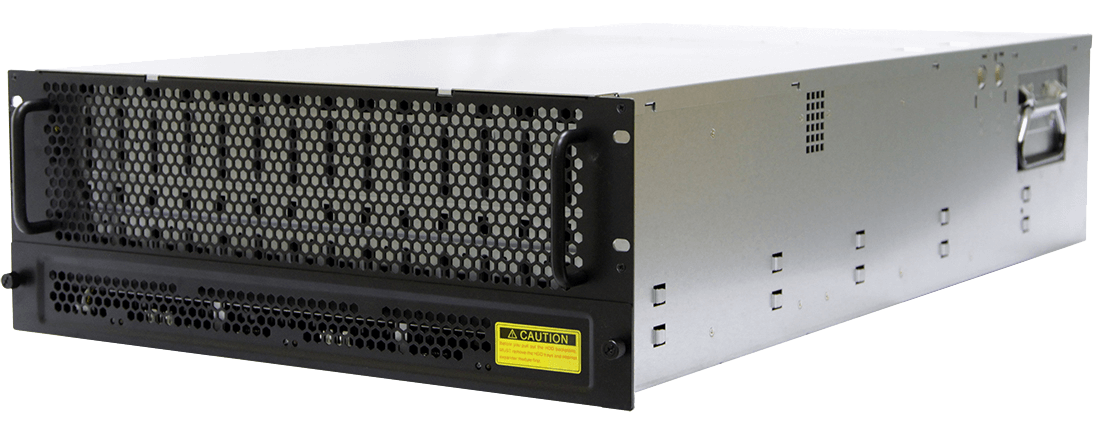

ZenSTOR-76-45front

ZenSTOR-76 Drawer Shared Storage

Large Scale Drawer Storage


Large Drawer Ethernet Shared Storage

Using our 14TB SAS3 HDDs, you can start with 840TB of Raw storage, but of course you can choose to use 8TB, 10TB, 12TB drives instead. If you use RAID6 you'll have around 728TB of usable space before you start adding expansion chassis and our hybrid drawer provides another 16x bays of SSDs. Using 4TB SSDs it will provide 64TB of Flash/Cache using 3D SSDs. If you use NVMe you can start with 16x 1TB or 2TB NVMe drives for 16TB or 32TB of extreme performance.... typically 5x the performance of SSDs.


Put the latest storage technology to work for you

ZenSTOR-76 is an all-in-one Ethernet-based shared storage solution for professional video editors requiring shared access to media files. The Server, Networking, and Storage are all accommodated within ZenSTOR-76 4U rack mount design. ZenSTOR-76 offers the right levels of capacity and storage software to keep you working efficiently. ZenSTOR is built on an open source operating system that was customized to be easy to use, feature-rich, reliable and perform at a high level. An intuitive web-based graphical user interface makes it easy for non-IT users to set up and manage ZenSTOR-76.

Storage Options and Supported Software

Choose from a 76 drive system with 2TB-12TB drives or add expansion chassis’s if needed. ZenSTOR-76 makes use of high performance 12Gb SAS drives to meet the high-bandwidth requirements of 4K video streams. ZenSTOR-76 Supports Avid+IndieStor, Adobe Creative Suite, Apple Final Cut 7, Apple Final Cut Pro 10 in addition to other popular multimedia applications. None of the ZenSTOR products require any additional client or server licenses or metadata server(s). ZenSTOR-76 supports AFP (Apple Filing Protocol), NFS (Network File System) and Samba (CIFS) which allows Windows, Linux, Macintosh and UNIX clients to share media files resident on the ZenSTOR-76’s storage.

  • Large Scale

    The base Unit will allow a user to start with 840TB of Raw storage,

  • RAID Support

    Protect your mobile date with extended RAID Drives - Support for RAID Level 0, 1, 5 and 10

  • Connectivity

    2 Gigabit and two optional 10 Gigabit or four Gigabit Ethernet Ports. Connect up to 6 clients.

  • Fans

    Variable Speed Fans — Operate slow and quiet during light loads, increased fan speed during high demand periods

  • Integrated Power

    Integrated Universal Power Supply — Built-in power supply means no external power brick to dangle or loose

  • Durability

    Rugged Aluminum Housing — Portable protection for any environment

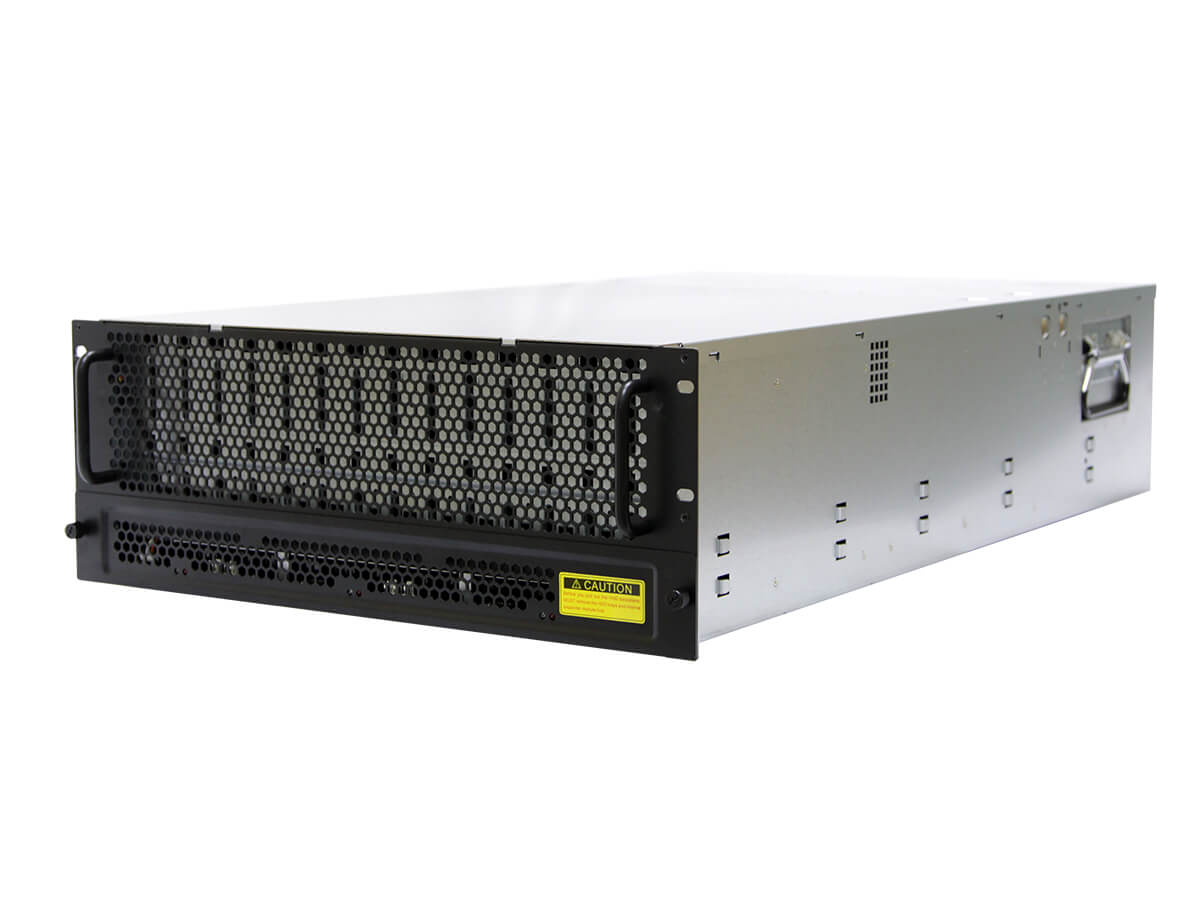

ZenSTOR-76-front

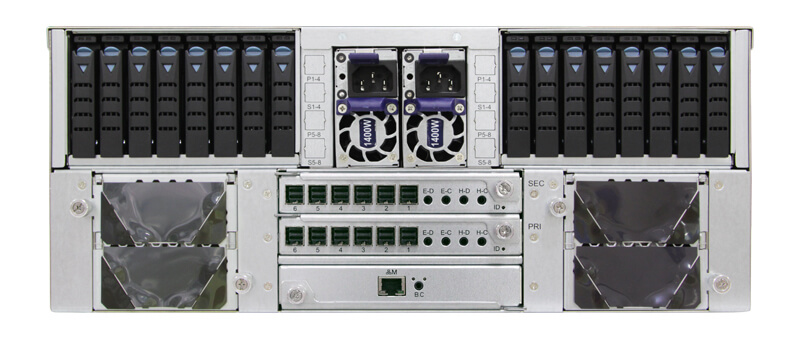

ZenSTOR-76-back

Stream Performance

ZenSTOR-76-bayOverview

Format Bandwidth
Stream Counts

DVCProHD  16.2 MB/sec
...

ProRes 422 20.6 MB/sec ...

ProRes 422 HQ 30.9 MB/sec ...

ProRes 4444 41.0 MB/sec ...

Specifications Performance


Operating System Customized BSD
File System ZFS
Management Web GUI
Boot Device 6.0 Gb SATA, 6.0/12.0 Gb SAS
File Access Protocols AFP, Samba (CIFS), NFS, FTP, FTPS, SFTP
RAID Levels 0, 1, 5, 10
Drives - Base System 60 top load bays, and 16x SSDs
Drives - Max Supported 60 top load bays, and 16x SSDs
HBA HBA/RAID card
Power Supplies 800W 1+1 hot swap redundant 80+ Platinum
Fans 4 x 8038 hot swap fans
Physical Characteristics
Dimensions mm : 435 x 795 x 175.8 inches : 17 x 31.3 x 6.9
Weight kgs : 52.8 lbs : 116.3
Operating Temperature Temperature : 0ºC to 35ºC
Non-Operating Temperature Temperature : -20ºC to 60ºC
Relative Humidity 10% to 90%

Ready for more info on ZenSTOR-76 Drawer Storage?

ZenSTOR-76 is a full featured, high-performance video editing shared storage appliance with advanced file sharing capabilities. are you ready to integrate Titanium into your workflow?

Call or Contact us now

Our team is standing by to help you create the perfect storage solution for either yourself and your creative team.
Contact us
Special Instructions: North American Pricing Only. Not in North America? We provide high performance solutions that are available worldwide through a network of partners.
